Lifts

Electro-hydraulic 4-post lift for wheel alignment, lifting capacity 4000кг, platform dimensions 650x5100мм, distance between posts 3000мм, (included with spacers for moving turntables), homologated for RENAUL

In stock

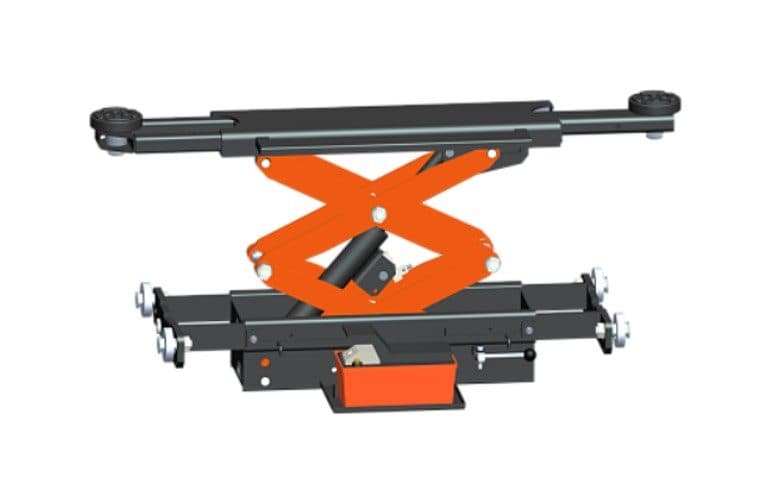

Pit Jack (Jacking Beam) VSG.J20PN.901767 Space Drive type: air-hydraulic Lifting capacity: 2,000 kg Operating air pressure: 6–10 bar Maximum oil pressure: 150 bar Operation: manual control Type: axle jacking beam Translation mechanism: elastic rollers Locking system: automatically engaging mechanical lock with pneumatic release Lowering control: two-hand “deadman” control Design: open front, extra-low profile Country of origin: Italy

Pit Jack (Jacking Beam) VSG.J20PN.901682 Space Drive type: air-hydraulic Lifting capacity: 2,000 kg Operating air pressure: 6–10 bar Maximum oil pressure: 150 bar Weight: 107 kg Operation: manual control Type: axle jacking beam Translation mechanism: elastic rollers Locking system: automatic mechanical lock with pneumatic release Lowering control: two-hand “deadman” control Design: open front, extra-low profile Country of origin: Italy

To order

Scissor lift with 3.5 t capacity for passenger-car service.

Type: two-post electro-hydraulic lift Lifting capacity: 4200 kg Lifting height: 1900 mm Minimum pickup height: 90 mm Lifting time: approx. 50 s Overall height: 3900 mm Overall width: 3580 mm Drive-through width: approx. 2558 mm Front arm length: 615–1150 mm Rear arm length: 890–1390 mm Motor power: 2.2 kW Electrical safety-lock release Installation: floor-mounted

Pneumo-hydraulic pit jack with 3 t capacity for lifting axles in service pits.

Electro-hydraulic parallelogram scissor lift, lifting capacity 5,5т, for wheel alignment, surface-mounted for Mercedes-Benz, with ramps for surface installation (min height 310 мм). Lifting platforms 5400 мм. Lifting capacity 5500 кг, homologated for Mercedes-Benz.

Electro-hydraulic scissor lift for wheel alignment, flush-with-floor installation. Lifting platforms 5500 мм. Lifting capacity 5000 кг, homologated for VOLVO, HYUNDAI

Electro-hydraulic scissor lift for wheel alignment, with platforms for flush-with-floor installation. Lifting platforms 5500 мм. Lifting capacity 6000 кг.

Electro-hydraulic scissor lift for wheel alignment. For flush-with-floor installation. Lifting platforms 5500 мм. Lifting capacity 6000 кг. Version with second-level lift, lifting capacity 4000 кг

To order

Electromechanical 4-post lift with flat platforms, lifting capacity 20000 кг, platform dimensions 700x8000 мм, distance between posts 3115 мм

Two-plunger lift, lifting capacity 3500кг, with flat platforms, 4200x615 мм, distance between pistons 1340мм, piston cross-section 120х120 мм, lifting height 1960мм,

Two-plunger lift, lifting capacity 3500кг. with platforms, distance between pistons 1340мм, piston cross-section 120х120 мм, lifting height 1990мм, low profile of platforms with height 95 мм, platform length 1990 (240+1510+240) мм, in-floor installation, mounting cassette separately. Wall-mounted control panel, homologated for VOLVO

To order

2-plunger lift, lifting capacity 5000 кг. telescopic front arms of 3 sections, rear 3-step, pads 125/149 mm, distance between pistons 1160 мм, piston cross-section 180 мм, lowered height - 123 мм, in-floor installation

Electro-hydraulic 4-post lift for wheel alignment, lifting capacity 5000кг, platform dimensions 650x5700 мм, distance between posts 3000мм, homologated for VOLVO

To order

2-plunger lift, lifting capacity 5000кг. with 3-step telescopic arms, pad diameter 100 мм, distance between pistons 1340мм, piston cross-section 120х120 мм, lowered height - 200 мм, in-floor installation, mounting cassette

2-post lift, electro-hydraulic, twin-cylinder, with upper synchronization, single-motor, engine 2,6 кВт, with mechanical stopper system, D=125mm H=100/135mm, long arms, of 3 parts 840/1800mm

lifting capacity 3500кг. with 2-step telescopic arms, pad diameter 100 мм, distance between pistons 2162мм, square cross-section of piston 120х120 мм, lifting height 1850мм, lowered height - 90 мм, in-floor installation
