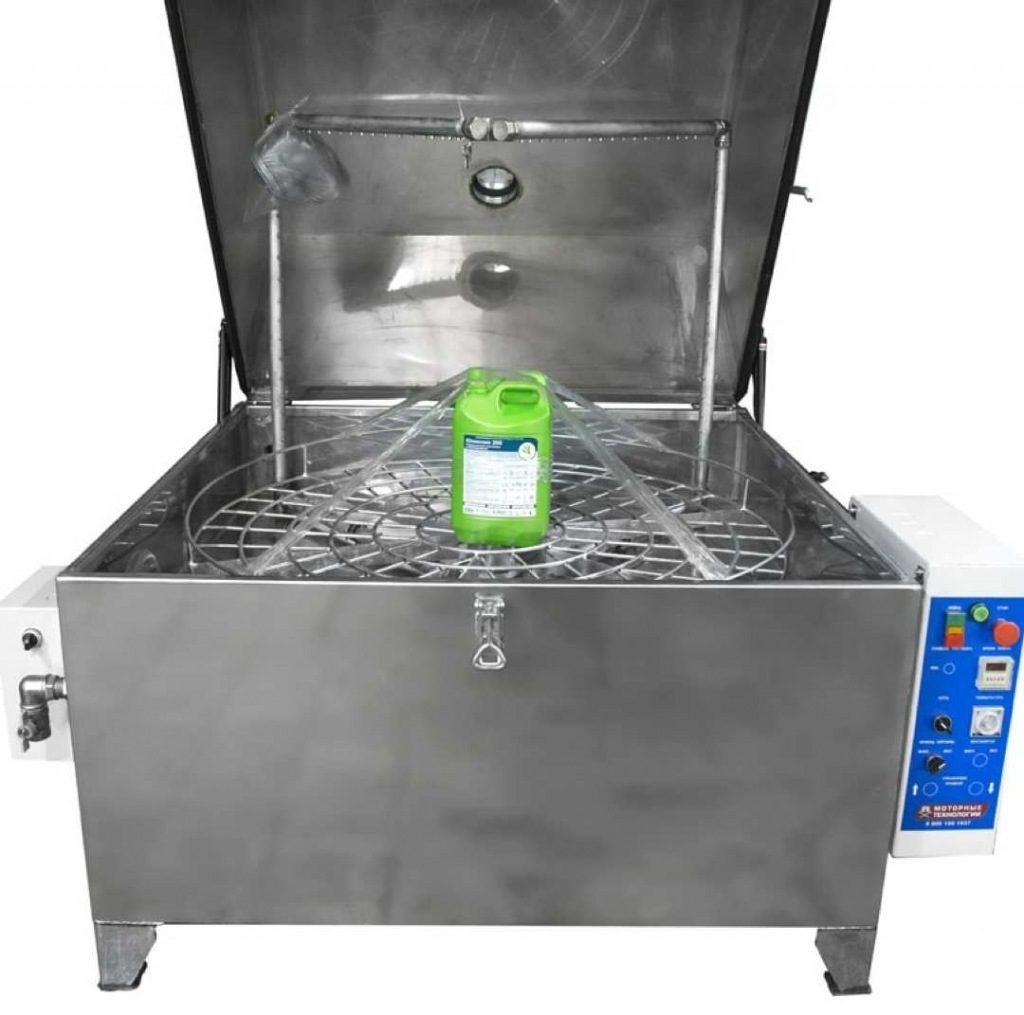

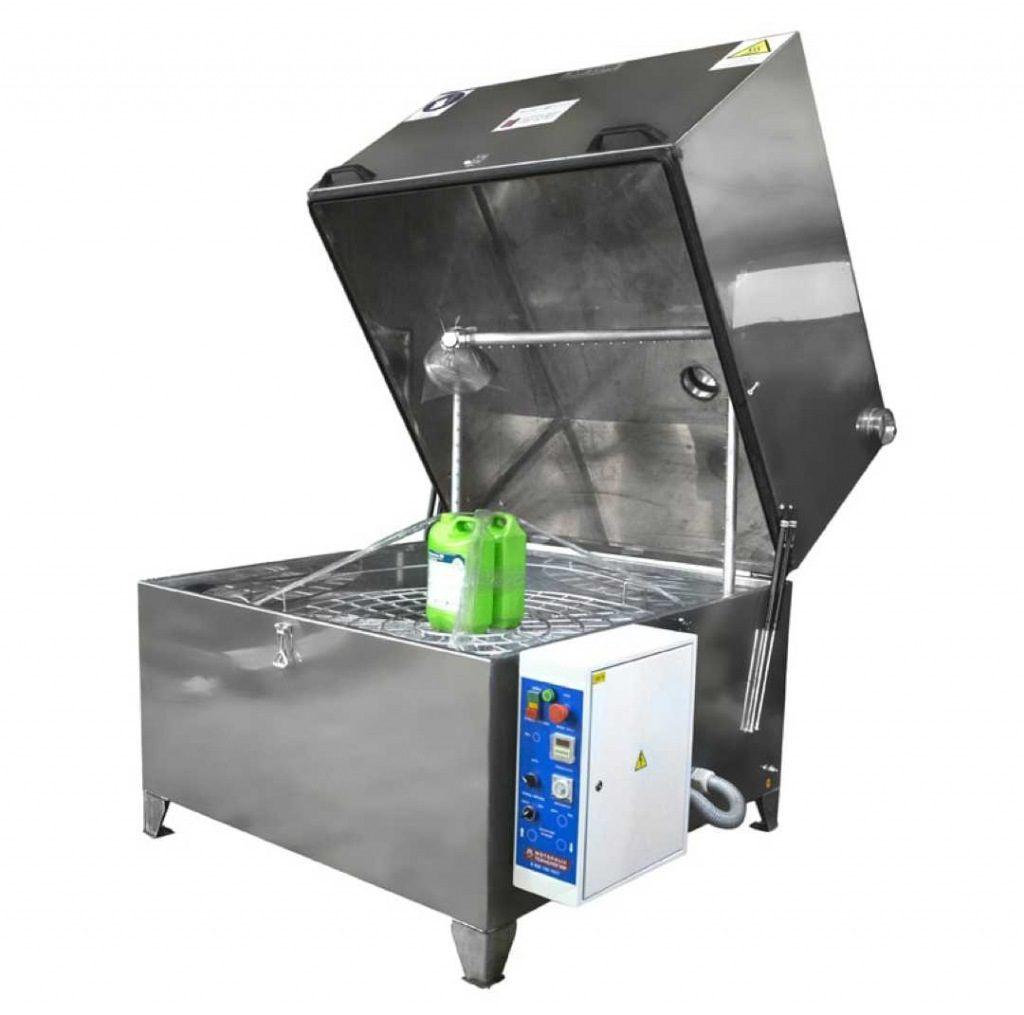

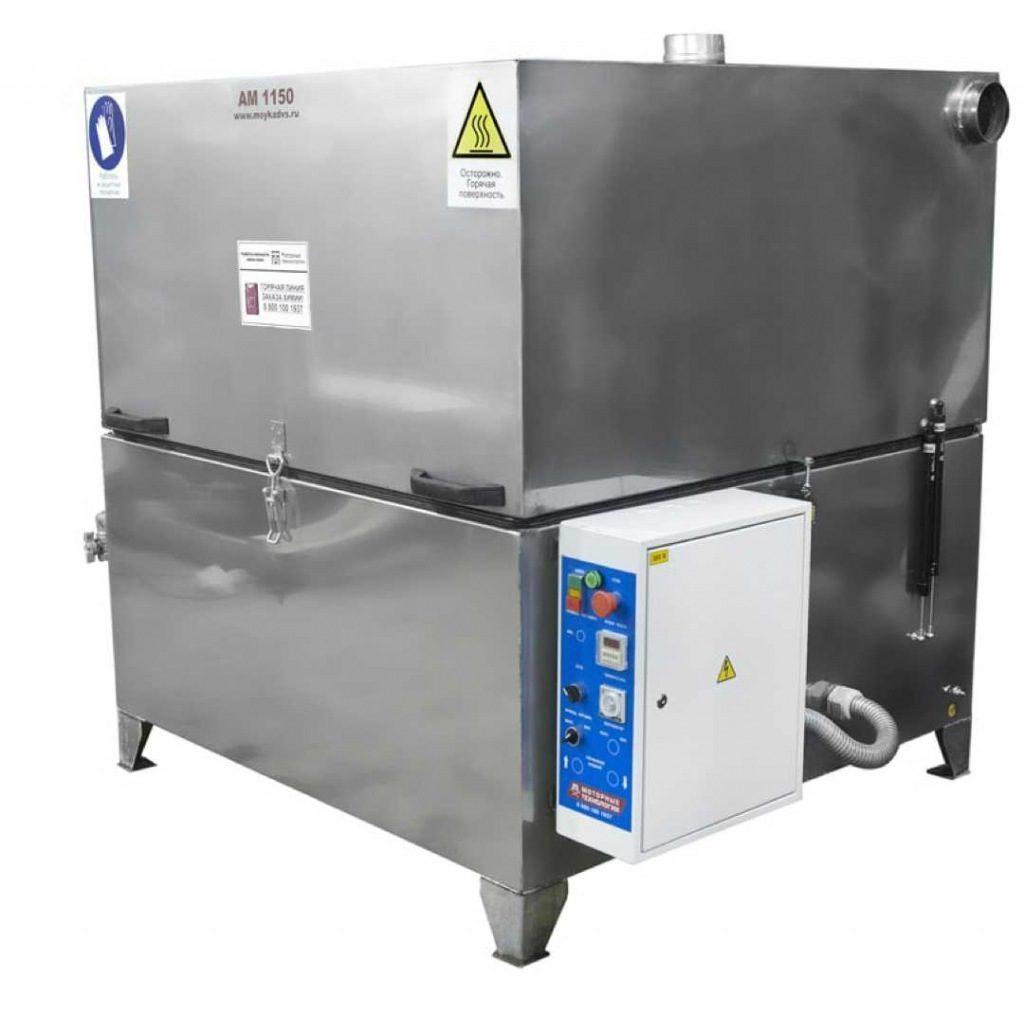

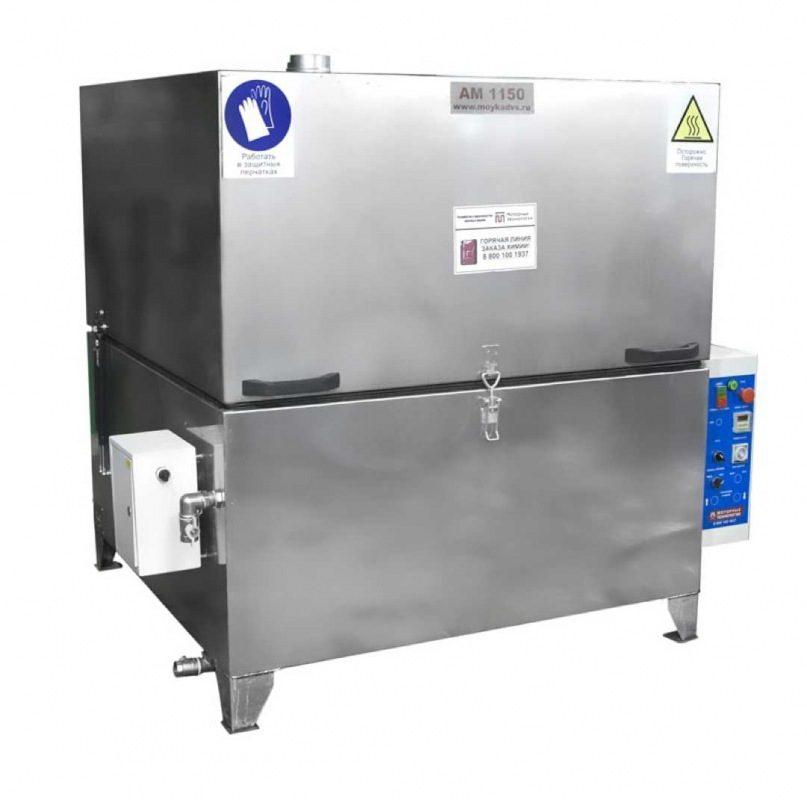

Parts washer АМ1150 ЭКО with electromechanical drive

Parts washer for auto service AM1150 ECO

• It is a washing chamber with a closed circuit.
• The parts washer is designed to remove cutting fluids, oil-petroleum and mechanical contaminants from components of machines, engines, industrial machines and other equipment.
• The temperature and duration of the processing cycle are set on the control panel.
• Rotation of the basket ensures the necessary positioning of parts in front of the manifolds.
• The U-shaped form of the ramps allows flushing products from above, below and from the side during the set time.
• Automatic washing units of the AM series are designed for use with weakly alkaline solutions.
• Ordinary tap water is used to fill the tank.
• The line is equipped with two types of basket drive – jet and electromechanical.
• When using the electromechanical drive, the basket with parts rotates evenly at a frequency of 5-10 rpm.
• This ensures high cleaning quality due to the uniform supply of washing solution over the entire surface of the parts.
• The electromechanical drive is the most effective solution.
• The jet drive imposes a number of restrictions on the operation of the machine, such as even distribution of products by weight in the basket, sufficient surface area of parts, and observance of the tilt angle.

Recommended for:

• Workshops for repair of trucks and buses
• Workshops for repair of construction and agricultural machinery
• Turning-milling production areas
• Repair areas of the oil and gas complex

Basic configuration

• Body, tank made of AISI 430 stainless steel, 2.0 mm thick
• Ramps and pipelines made of stainless steel
• Basket made of ferrous metal
• Brass nozzles
• Stainless steel heating elements
• Medium-capacity Italian Pedrollo pumps
• Electrical components from leading manufacturers
• Electromechanical basket rotation drive
• Automatic temperature control and maintenance system with a maximum heating limit of 90 °C
• Digital time relay
• Analog temperature controller
• Emergency stop system
• Two-stage washing solution purification system

Additional options:

• Steam condensation system
• Disc oil separator
• Weekly timer
• Forced steam exhaust
• Hot-air parts drying system (includes forced steam exhaust)
• Manual parts cleaning system
• Manual compressed-air parts blowing system
• Automatic water top-up system for the tank
• Automatic detergent dosing system with automatic water top-up system for the tank
• Automatic solution drainage system from the tank
• Fine filtration system with autonomous pump and bag filter
• Pneumatic lid lifting with compressed air
• Tank thermal insulation for AM1000-1400
• Basket for small parts
• Stainless steel basket
• Body and tanks made of AISI304 stainless steel

Моторные Технологии AM1150 ECO characteristics

• Name Value
• Basket diameter, mm 1150
• Working zone height, mm 730
• Max lifting capacity 350
• Drive electromechanical
• Length, mm 1520
• Width, mm 1380
• Height, mm 1520
• Washing solution tank volume, l 200
• Maximum solution temperature, ⁰С 90
• Pump power, kW 2х1,1
• Pump capacity, l/min 2х150
• Pump pressure, bar 2,5-3
• Heating elements power, kW 3х2,0
• Total power 8,6 кВт
• Supply voltage, V 400/50
• Weight, kg 340
• Manufacturer Моторные Технологии
