Name: Vibration control stand HUNTER Road Force ELITE with load roller and scanners, wing nut, RFE00BLKE
Brand: Hunter Engineering
SKU: RFE00BLKE
Price: 12850000 KZT
Availability: InStock

Specifications

Characteristic: HUNTER wheel balancer for passenger cars
Wheel balancer HUNTER: Professional equipment for precise diagnostics and balancing of passenger car wheels. It features high measurement accuracy, increased pressure roller load, and a short measurement cycle, making it an optimal solution for tire service and service centers.
Characteristic: Main advantages
High measurement accuracy: up to 1 g
Increased pressure of loading roller: 567 kg
Support for large diameter wheels: up to 1016 mm
Fast measurement cycle: only 4 seconds
Characteristic: Reliability and quality of HUNTER brand (USA)
Brand: HUNTER
Service type: passenger car
Max pressure of loading roller: 567 kg
Max wheel diameter: 1016 mm
Max wheel weight: 79 kg
Max wheel width: 508 mm
Air pressure: 7–12 bar
Disk diameter: 10–30 inches
Disc width: 1.5–20.5 inches
Shaft rotation speed: 300 rpm
Min imbalance display value: 1 g
Measurement accuracy: 1 g
Measurement cycle: 4 sec
Power supply: 220 V / 1 phase / 50 Hz
Overall dimensions (H×W×D): 1778 × 1448 × 1600 mm
Weight: 395 kg
Characteristic: Area of application
Characteristic: tire service workshops
Characteristic: of car services
Characteristic: of dealerships
Characteristic: Service station with high workload

Description

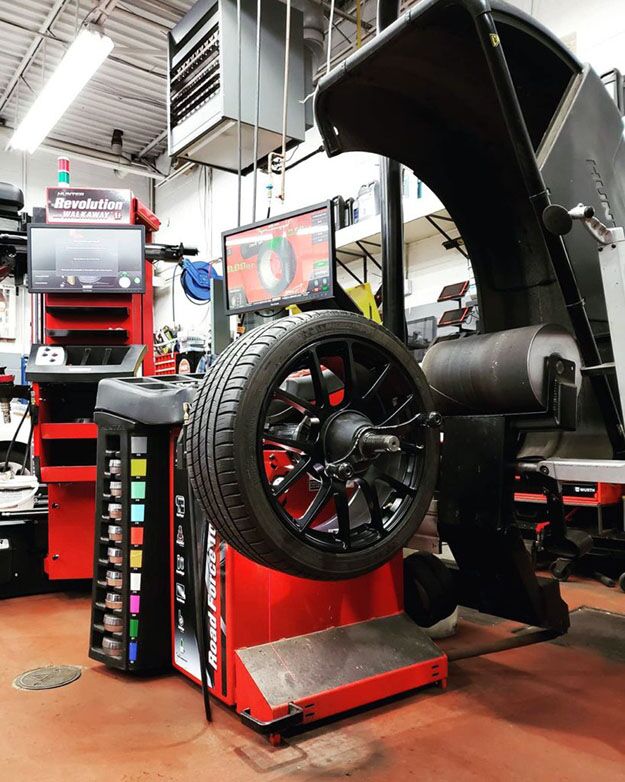

A new generation of Road Force® Elite vibration-control stands.
A stand with a load roller that, in addition to traditional wheel imbalance, measures tyre stiffness non-uniformity, as well as radial and lateral runout and lateral pull of the wheel faster than the measurement cycle of a traditional balancer takes.
The stand gives clear instructions for solving ride-smoothness and lateral-pull problems that cannot be fixed with standard balancers and wheel-alignment tools.
Impact-resistant 22" LCD monitor with touch control and an intuitive 3D graphical interface. Built-in training videos included.
Main advantage: fully non-contact measurement of imbalance, force non-uniformity, radial runout and lateral wheel pull in one short measurement cycle!
No manual operations required! Measurement is performed via non-contact laser scanners.
The machine automatically scans the inside of the rim, determines the number and position of spokes and indicates optimal weight-placement locations with the ability to hide them behind the spokes.
StraightTrak® - measures the degree of lateral tyre pull and applies this data to optimally position the wheel set on the vehicle to eliminate lateral pull.
ServoStop - auto-rotation of the wheel to the weight-installation point
Built-in laser pointer with illumination of the inside of the rim
SmartWeight - weight-saving function
Built-in automatic tyre-inflation unit
Wing nut

A SET OF SMALL-ANGLE CENTERING BUSHINGS (COLLETS) 10 PCS. IS INCLUDED IN THE PACKAGE.

ADDITIONAL ACCESSORIES FOR THE STAND (OPTIONS):

20-3101-1, Wheel lift for Hunter GSP9200TOUCH, RFT, RFE series balancers
20-3765-1, 12-o'clock laser pointer with LED illumination (Hammerhead)
